PF>0.98 3 years warranty time 100w retrofit street lighting
Features of street lighting
● Light source: Cree LED
● Low power consumption
● High luminosity and long life time
● Environmentally friendly
● Excellent opto-electronic performance
● High-efficiency cooling system
● Meanwell Driver, PF>0.98
Specification of street lighting
| Parameter | Description |
| Model | LD-B100A |
| Power | 100W |
| Input Voltage | AC100~277V 50/60Hz |
| Light Efficiency | >100Lm/W |
| Material | Aluminum |
| Power Factor | >0.98 |
| Total harmonic index | >20% |
| Flux | 10000LM |
| LED lifetime | >50000H |
| Operation temperature | -30℃~+50℃, |
| Color Temperature | Warm light/Day light/Pure light/ Cold light |
| Driver | HLG Meanwell |
| Beam Color | Typical 5500K |
| Color Rendering Index | Typical 75 |
| Package | 680*400*140mm |
IP Rating for street lighting
IP54
First digit in IP rating (IPXX)-Solid Particle Protection
| Level | Object Size Protection | Effective Against |
| 0 | ----------- | No Protection |
| 1 | >50mm | Any large surface of the body (like the back of a hand) but non protection against deliberate contact with a body part. |
| 2 | >12.5mm | Fingers or similar objects |
| 3 | >2.5mm | Tools, thick wires, etc. |
| 4 | >1mm | Most wires, screws,etc. |
| 5 | Dust Protected | Ingress of dust is not entirely prevented, but it will not enter in sufficient quantity, complete protection against contact |
| 6 | Dust Tight | No ingress of dust, complete protection against contact. |
Second digit in IP rating (IPXX)-Liquid Ingress Protection
| Level | Protected Against | Qualification |
| 0 | Not protected | --------------------- |
| 1 | Dripping water | Vertically falling dripping water should have no harmful effect |
| 2 | Dripping water at 15° Angle | Vertically falling dripping water should have no harmful effect when the enclosure is tilted up to 15° from its normal position |
| 3 | Spraying water | Water falling as a spray at any angle up to 60° from vertical shall have no harmful effect |
| 4 | Splashing water | Water splashing up against the enclosure from any direction shall have no harmful effect |
| 5 | Water jets | Water projected by a nozzle against enclosure from any direction shall have no harmful effect |
| 6 | Powerful water jets | Water projected in powerful jets against enclosure from any direction shall have no harmful effect |
| 7 | Immersion up to 1m | Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time |
| 8 | Immersion beyond 1m | The equipment is suitable for continuous immersion in water under conditions specified by the manufacturer. |

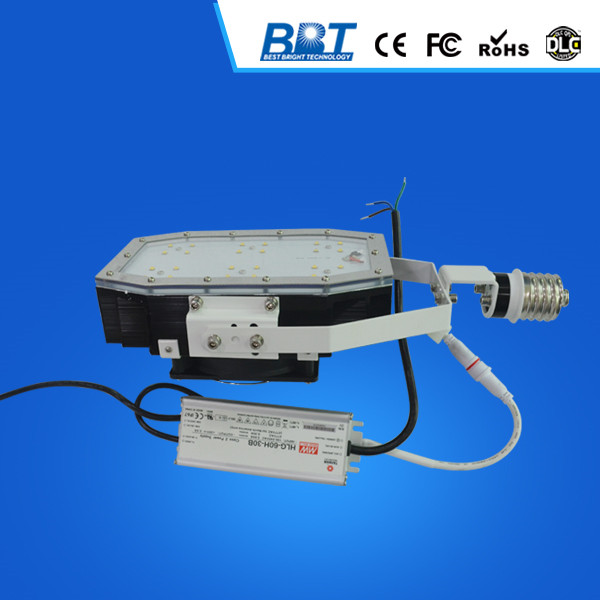

Photos of street lighting
Advantages of street lighting
Impression drawing of street lighting
Street lighting shipment
1. By Express: such as DHL, UPS, TNT, FEDEX etc. The dispatch time is about 3-5 days
2. Air Freight: when your order more than 100kgs which will be more economical than express
3. Sea Freight: we will update sea freight once we know your sea port where goods will be delivered
4. Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items
If you want to know the shipping cost, pls tell us your address and quantity.
